How Large Are CAD Files (and Why They’re Hard to Manage)

• 15 April 2026
• CAD Software
• Written by Editorial Team

CAD files vary widely in size, ranging from a few kilobytes for simple drawings to several gigabytes for complex 3D models and assemblies. As projects grow in scale and detail, so do the files that support them. This growth is not always a concern on its own, but it becomes critical when it begins to influence how efficiently teams can design, share, and manage their work.

Large CAD files often introduce challenges that extend beyond storage. They can slow down system performance, interrupt design workflows, and make collaboration more cumbersome, especially when multiple stakeholders need access to the same data. Transferring heavy design files across networks can take time and maintaining them can place added pressure on both local systems and IT infrastructure.

This article explores why CAD file sizes increase and why they can become difficult to manage over time. It also outlines practical ways to address these challenges through file optimization techniques and smarter infrastructure choices. From improving file efficiency to leveraging CAD hosting and cloud-based design environments, the goal is to provide a clear path toward smoother, more reliable CAD workflows.

Understanding CAD File Size

Before addressing performance issues or optimization strategies, it is important to understand what contributes to the size of CAD files and how that size translates into real-world challenges. Design files are not just visual representations but structured containers of data, and their complexity often reflects the depth of information they hold. A clear understanding of these elements helps explain why some files remain manageable while others become increasingly difficult to work with in traditional or even cloud-based CAD environments.

What Makes CAD Files Large?

CAD files are built from multiple internal components that collectively determine their size. These include structural elements such as headers, object data, and mapping information, with object data typically accounting for the largest portion due to the volume of geometric and non-geometric details it contains.

In addition to this core structure, CAD software stores a wide range of supporting information. Configurations, embedded images, metadata, and project-specific elements all add layers of data that expand the overall file footprint. Each platform handles this differently, which is why similar designs can vary in size depending on the software used.

It is also worth noting that larger files are not always a sign of inefficiency. Complex projects with detailed assemblies and rich datasets naturally produce heavier files. The challenge arises when unnecessary data or inefficient practices contribute to file growth beyond what is required for the design itself.

AutoCAD Basic	AutoCAD Standard	AutoCAD Power	AutoCAD Architect
$99/month* Save 10% on Annual Payments	$149/month* Save 10% on Annual Payments	$279/month* Save 10% on Annual Payments	$479/month* Save 10% on Annual Payments
100 GB SSD Disk	100 GB SSD Disk	100 GB SSD Disk	100 GB SSD Disk
Dedicated 16 GB RAM and 4 vCPU	Dedicated 55 GB RAM and 6 vCPU	Dedicated 110 GB RAM and 12 vCPU	Dedicated 220 GB RAM and 18 vCPU
4 GB vGPU	4 GB vGPU	8 GB vGPU	12 GB vGPU
Windows Server 2022	Windows Server 2022	Windows Server 2022	Windows Server 2022
15 Days Backup Included	15 Days Backup Included	15 Days Backup Included	15 Days Backup Included
Buy Now	Buy Now	Buy Now	Buy Now

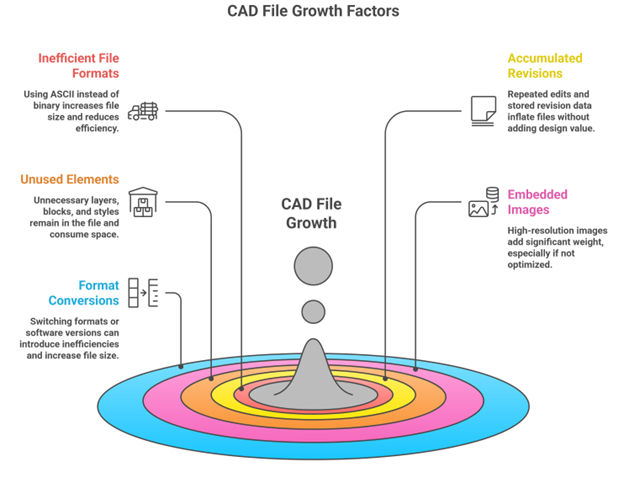

Why CAD Files Grow Over Time?

While some file size is determined at creation, much of the growth happens gradually as CAD files move through different stages of use. Edits, revisions, and format changes can quietly add layers of data that are not always visible but still impact performance and manageability. Understanding these lifecycle factors is key to maintaining efficient CAD workflows, whether files are stored locally or within CAD hosting environments.

• Inefficient file formats: Using formats such as ASCII instead of binary increases file size and slows down processing due to less efficient data storage.
• Accumulated revisions and history: Repeated edits, saved states, and embedded revision data build up over time, often without contributing to the final design.
• Unused elements and redundant data: Layers, blocks, styles, and vector entities that are no longer needed remain within the file and continue to consume space.
• Embedded raster images: High-resolution images significantly increase file weight, especially when not compressed or optimized before insertion.
• Format conversions and version changes: Moving between file types or software versions can introduce inefficiencies that lead to larger, less streamlined CAD files.

The Real Cost of Large CAD Files

As CAD file sizes increase, their impact becomes more noticeable across daily operations. Performance is often the first area affected, with large design files causing slow load times, lag during editing, and occasional system instability, particularly on machines with limited memory resources.

File sharing introduces another layer of difficulty. Transferring large design files through standard channels can be restrictive due to size limits, and slower network speeds can further delay uploads and downloads. Even in CAD hosting environments, inefficiently structured files can affect access speed and responsiveness.

Storage demands also rise alongside file size. Larger files consume more disk space, whether stored locally or in cloud-based CAD solutions, which can lead to increased infrastructure costs over time.

Finally, productivity tends to decline when teams are required to work with oversized or cluttered files. Excess data makes navigation more complex, slows down routine tasks, and creates friction in collaborative workflows. Over time, these inefficiencies can have a measurable impact on project timelines and overall output.

How to Work on 5GB+ CAD Files Without Lag

Working with large CAD files requires more than just powerful hardware. A focused approach that reduces unnecessary data and simplifies model complexity can significantly improve responsiveness. When applied consistently, these methods help maintain smooth performance across both local systems and CAD hosting environments.

File-Level Optimization

• Use the “Save As” function to create cleaner versions of CAD files by removing redundant or corrupted data
• Switch to lightweight or binary formats to improve efficiency and reduce storage requirements
• Apply built-in tools such as Audit, Purge, and Recover to identify issues and eliminate unnecessary elements
• Remove unused layers, blocks, references, and other redundant data from the file
• Replace repeated geometry with reusable blocks to minimize duplication
• Compress or resize embedded raster images to reduce file weight

Model Simplification Strategies

• Adjust import or read settings to exclude unnecessary geometry before loading files
• Remove hidden elements, redundant geometry, and non-essential components from assemblies
• Defeature models by eliminating small details such as holes, fillets, and chamfers
• Remove small bodies like fasteners in bulk to simplify complex assemblies
• Eliminate non-critical features such as ribs or bosses to streamline the model

Geometry Optimization Techniques

• Use cutting planes to isolate and remove irrelevant sections of a model
• Flatten assemblies into single or multibody parts for easier handling
• Replace detailed geometry with bounding boxes or cylinders to reduce processing load
• Apply convex hull or wrapping methods to approximate complex shapes
• Reduce polygon count to lower model complexity while maintaining acceptable visual quality

Built-In and AI-Powered Optimization Tools

• Use Shrinkwrap and Simplify functions to reduce the complexity of assemblies
• Apply mesh optimization tools to balance visual fidelity with file size
• Leverage AI-driven block detection to convert repeated geometry into reusable components
• Use native compression features to significantly reduce file size
• Utilize external tools such as PDM systems and compression software for efficient file handling and secure transfers

The Infrastructure Factor: RAM and System Requirements

Optimizing CAD files improves efficiency, but system performance ultimately depends on the resources available to process them. Large design files place heavy demands on memory and computing power, making infrastructure a critical part of maintaining consistent performance. Whether working on local machines or using CAD hosting solutions, the right setup determines how smoothly files can be opened, edited, and shared.

Why Local Capacity Matters

Handling large CAD files requires substantial memory, as most design applications rely heavily on RAM during operation. In many cases, systems need several times the file size in available memory just to open a model, and even more when performing edits or rendering tasks. This demand increases quickly as complexity grows.

When available memory falls short, systems begin to rely on disk-based processing, which slows performance significantly and disrupts workflows. Routine actions such as rotating models or switching views can become sluggish, reducing overall productivity. Background applications further consume memory, which limits the resources available for CAD tasks and adds to performance strain.

How CAD Hosting Improves Performance for Large Files?

CAD hosting offers a more scalable way to manage large design files without being constrained by local hardware limitations. Cloud-based environments provide access to high-performance infrastructure that is designed to handle complex models and large assemblies with consistency. Resources are allocated dynamically, which allows users to work without worrying about system upgrades or capacity limits.

Apps4Rent’s hosted CAD solutions are designed to eliminate the common bottlenecks associated with large CAD files by providing secure, centralized access to data from anywhere. This ensures that teams can work on the latest version of a file without delays or version conflicts. Optimized network performance improves responsiveness during remote sessions, while built-in backup and security measures protect critical design data. By removing reliance on local systems and enabling seamless collaboration, Apps4Rent helps teams maintain consistent productivity even when working with large, resource-intensive CAD files and projects.

CAD File Collaboration and Long-Term Efficiency

As CAD files move across teams and project stages, maintaining consistency becomes essential for both performance and usability. Without structured collaboration practices, even well-optimized files can become difficult to manage. Establishing clear workflows helps ensure that large design files remain accessible, organized, and efficient over time.

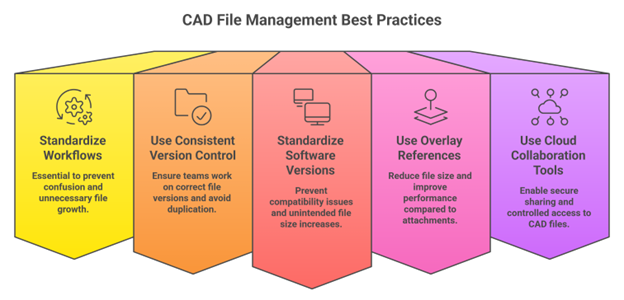

Best Practices for Managing CAD Files in Team Environments

Working with CAD files in a team setting requires discipline and standardization to avoid confusion and unnecessary file growth. The following practices help maintain clarity and control across shared environments:

• Maintain consistent file naming conventions and version control to prevent duplication and ensure teams work on the correct file versions
• Standardize CAD software versions across teams to avoid compatibility issues and unintended file size increases
• Use overlay references instead of attachments to reduce file weight and improve overall performance
• Leverage cloud-based collaboration tools to enable secure, efficient sharing and controlled access to CAD files

Maintaining CAD File Efficiency at Scale

As projects expand, managing CAD files becomes more complex, especially when multiple users and large datasets are involved. Scalable processes help sustain performance and reduce long-term inefficiencies:

• Use centralized file management systems to maintain control, reduce redundancy, and organize CAD data effectively
• Implement automated optimization workflows to keep CAD files clean and prevent gradual file bloat
• Enable real-time collaboration to ensure teams are aligned and avoid creating duplicate or outdated files
• Adopt CAD hosting environments to support distributed teams with consistent access, improved performance, and streamlined file management

Achieving High-Performance CAD Workflows with Apps4Rent CAD Hosting

Managing CAD files effectively requires more than isolated fixes. It calls for a balanced approach that addresses both how files are structured and how they are supported by the underlying infrastructure. As designs grow in size and complexity, performance challenges tend to stem from a combination of data-heavy models and limited system capabilities.

The key takeaway is clear. CAD file management is both a technical and an architectural concern. Optimizing geometry, removing unnecessary data, and using the right tools can significantly improve efficiency. At the same time, system resources, memory availability, and access environments play an equally important role in determining how smoothly those files can be used in practice.

This is where a well-aligned hosting strategy becomes essential. Apps4Rent’s CAD hosting services are designed to support demanding design workloads by providing stable, high-performance environments for working with large CAD files. With deep experience across major cloud platforms such as AWS, Microsoft Azure, Google Cloud, and Oracle Cloud, Apps4Rent delivers flexible infrastructure options tailored to different project needs. This expertise ensures reliable application hosting, consistent performance, and secure access to design data.

By combining optimized CAD files with a robust hosting environment, teams can maintain steady performance, reduce disruptions, and work more efficiently across projects of any scale. Contact us today via chat, call, or mail to learn more.
